Quick Disconnect Connectors for Thermocouples and RTD's

Standard Size

Miniature Size

Most Popular Connectors

  • Nylon or Higher Temp LCP Material
  • Standard Removable/Reversible
        Write-On Windows
  • Color Coded Body Matches
        Thermocouple Calibration
  • Standard and Miniature Sizes
  • Calibrations:K,T,J,E,R/S,G,C,D,U,N

    • Universal Female Connector

  • OMEGA's Patented "Fits All" Connector
        Accepts Both Standard and Miniature
        Industry Size Male Commectors
  • Rugged Glass-Filled Nylon Construction
  • Silicon Strain Relief
  • Fast Wiring Clamp Washers
  • Internal Wire Divider
  • Removable/Reversible Write-On Windows
  • Color Coded Body Matches
        Thermocouple Calibration
  • Calibrations:K,T,J,E,R/S,C,U,N

    • Low Noise Connectors

  • Nylon or Higher Temp LCP Material
  • Use Goound Strap Shown with Shielded or     Grounded Wire to Maintain Ground Wire     Connection from Connerctor to Shielded     Wire, Probe or Mating Connector
  • Ground Strap Also Strengthens Mechanical
        Connection Between Mating Connectors
  • Removable/Reversible Write-On Windows
  • Color Coded Body Matches
        Thermocouple Calibration
  • Calibrations:K,T,J,E,R/S,C,U,N

    • Ferrite Core Connectors

  • Built-in Ferrite Noise Suppression Elements
  • Models in High Temperature LCP Material
  • Solid Pin Condstrcuction For
        Maximum Durability and Service
  • Large Terminal Screws
        for Easy Wire Installation
  • Intergral Notch for Security Clip
        and Hole to Facilitate Mounting
  • Removable/Reversible Write-On Windows
  • Color Coded Body Matches
        Thermocouple Calibration
  • Calibrations:K,T,J,E,R/S,U,N

    • Quick Disconnect Connectors for Thermocouples and RTD's
    Standard Size Miniature Size
    Solid Pin, Extra Heavy Duty Connectors

  • Solid Pin Condstrcuction For
        Maximum Durability and Service
  • Available with Solid Cover or Quick-Wiring
        Caps (Standard Size)
  • Rugged Glass-Filled Nylon Shell
  • Intergral Notch for Security Clip
        and Hole to Facilitate Mounting
  • Removable/Reversible Write-On Windows
  • Color Coded Body Matches
        Thermocouple Calibration
  • Calibrations:K,T,J,E,R/S,G,C,D,U,N
    • 3-Prong Connectors

  • Incompensated Type "U" for RTD's and
        3-Wire Thermistors
  • Standard Shield Connection Pin for Grouded
        Thermocouples and Shield Wire
  • Color Coded Body Matches
        Thermocouple Calibration
  • Calibrations:K,T,J,E,U,N

    • Ceramic, Very High Temp, Heavy-Duty Connectors

  • High Purity, Heavy Duty Ceramic Body
  • Temperature Rating to 650℃(1200℉)
  • Oversized Terminal Screws for Easy Wiring
  • Available with a Removable Color-Coding     Dot
  • Calibrations:K,T,J,E,R/S,G,C,D,U,N

    • Circuit Board Connectors

  • New! Vertical Mount!
  • Glass-Filled Nylon 220℃(425℉)
  • For OEM Uses
  • Attached Directly to Circuit Board
  • Perfect for Handheld Thermometers
  • J,K,TE, and U Calibrations
  • Costom Units Designed for CE

    • Panel Jacks

    Type UPJ,

  • Universal! Accepts Standard or Miniature     Connectors
    Type MPJ,
  • Compact Size
  • Accepts Al Miniature Male Connectors
    Type SPJ,
  • Self-Securing Design
  • Accepts Al Standard Size Male Connectors
    Type JP,
  • Easy Installation
  • Decorative-Enhances Any Instrument
    Type TPJ,
  • Accepts Heavy Duty OTP-Type 3-Prong     Connectors
  • No Add'l Mounting Hardware
        or Installation Tools Required
    Type RSJ,
  • Accepts Al Standard Size Male Connectors
    Type RMJ,
  • Accepts Al Miniature Male Connectors

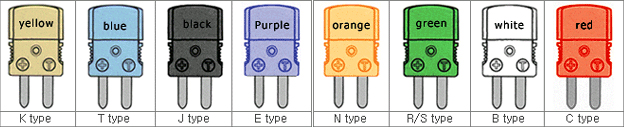

    • * COLOR CODE
